Product Details

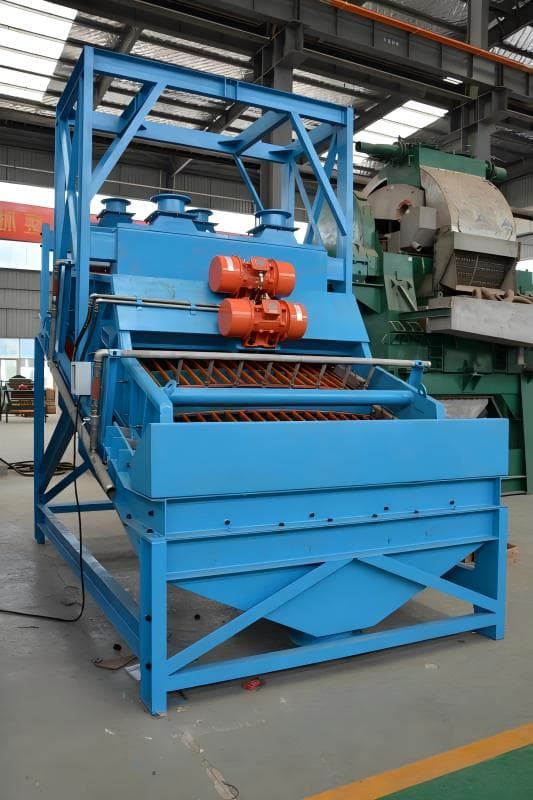

The fine screen is composed of two independent screening systems, equivalent to two traditional fine screens installed in the same frame. Driven by a single vibrator, each system consists of two screen meshes. Between each pair of screen meshes, there is a pulp trough lined with wear-resistant polyester rubber. With the help of a spray water device, the oversize product is thoroughly turned over and crushed in the pulp trough, and then screened again to separate coarse and fine particles.

Product Advantages

1. The two-stage feeding design is like having two screening machines, saving space and making it easy to replace fine screens.

2. The screen box has been analysed with finite element static and dynamic analysis, and the key component strengths and overall dynamic performance meet the standards.

3. The vibrating motor can be replaced quickly in case of a fault.

4.Screen mesh and processing capacity: Equipped with high-quality polyester screens, this equipment's processing capacity far exceeds that of traditional metal screens. It supports multi-path feeding to further improve efficiency and prevent clogging.

5.Iron Ore and Ilmenite:The high-frequency fine screen is used for concentrate particle size control and grading, effectively removing coarse intergrowths. Under the same grinding mill capacity, the concentrate grade is stably increased by 1-3%, and the filter moisture content is reduced by 0.5-1%.

6.General Replacement Advantage:

Replacing vibrating screens, the screening efficiency is increased by over 20%, and the grinding mill capacity is enhanced by more than 10%.
